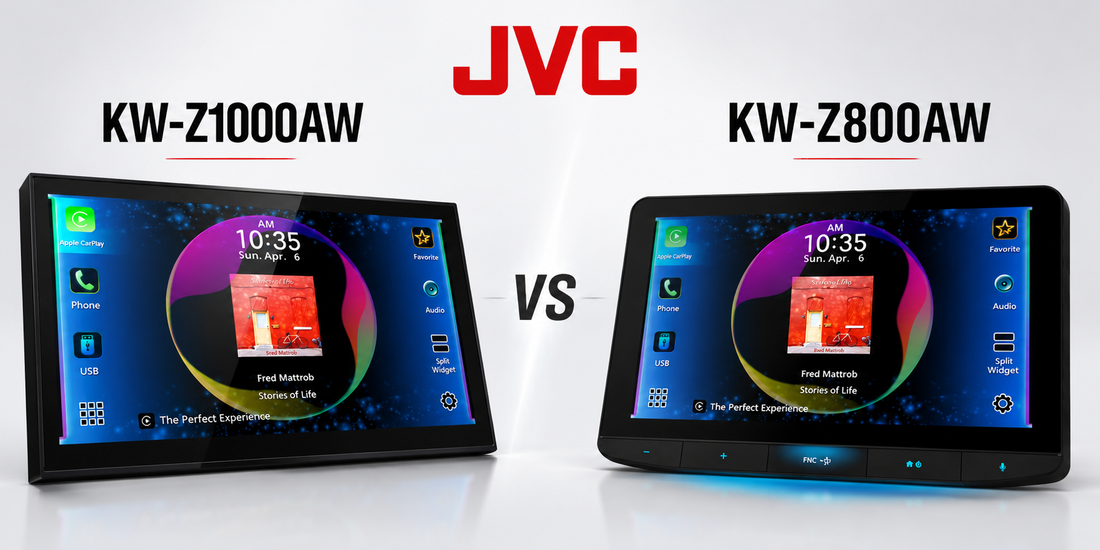

JVC's KW-Z1000AW and KW-Z800AW are both direct replacement receivers built around the same concept — a large HD touchscreen that integrates into compatible vehicles using iDatalink Maestro APX components, with no dash modification required. They share the same core technology, the same installation approach, and the same connectivity features. The difference comes down to screen size, price, and which vehicles each unit fits. Here's the full breakdown.
The Key Difference — Screen Size and Vehicle Fitment
This comparison isn't really about which unit is "better" — both are excellent. It's about which one fits your vehicle and whether the larger screen justifies the price difference for your situation. The Z1000AW gives you a 10.1" floating panel that mounts above the dash using Maestro APX hardware. The Z800AW gives you an 8" screen that drops directly into compatible factory 8" screen locations with a clean OEM flush fit.
Both units require iDatalink Maestro APX mounting and interface components, a Maestro RR or RR2 module, and vehicle-specific wiring — all sold separately. Vehicle compatibility is the first question, not which screen size you prefer. Before choosing between these two units, contact Saint Nordic to confirm which one is compatible with your specific year, make, and model.
Side-by-Side Spec Comparison
| Spec | KW-Z1000AW | KW-Z800AW |
|---|---|---|
| Price | $1,349.99 | $899.99 |
| Screen Size | 10.1" | 8.0" |
| Resolution | 1280 × 720 HD | 1280 × 720 HD |
| Display Type | Floating panel — mounts above dash | Direct OEM drop-in — flush factory fit |
| Wireless CarPlay | Yes | Yes |
| Wireless Android Auto | Yes | Yes |
| Split Screen | Yes | Yes |
| Bluetooth | 5.2 | 5.2 |
| Wi-Fi | Built-in | Built-in |
| Preamp Outputs | 3 × 4V (Front, Rear, Sub) | 3 × 4V (Front, Rear, Sub) |
| Built-In Power | 22W RMS × 4 | 22W RMS × 4 |
| EQ / DSP | 13-Band + 3-Way Crossover + Time Alignment | 13-Band + 3-Way Crossover + Time Alignment |
| Sound Processing | JVC K2 Technology | JVC K2 Technology |
| Camera Inputs | Up to 4 (HD compatible) | Up to 4 (HD compatible) |
| HDMI Input | Yes | Yes |
| HD Radio | Built-in | Built-in |
| SiriusXM | 360L Ready | Ready (tuner sold separately) |
| 2-Way Installation | No | Yes — for vehicles with limited depth |
| Maestro Integration | RR / RR2 required | RR / RR2 required |
| Price Difference | Z1000AW costs $450 more than Z800AW | |
What's Actually Different
Screen Size and Mounting Approach
The Z1000AW's 10.1" floating panel is larger than most factory screens in any vehicle class — it mounts above the dash on a Maestro APX bracket, giving you maximum screen real estate regardless of the factory screen size it's replacing. The Z800AW's 8" screen drops into the factory 8" screen cutout for a flush, OEM-style finish that looks like it came from the factory.
Which approach is better depends entirely on what you value. The Z1000AW is more visually impactful — a 10.1" screen is noticeably larger than an 8" screen and the floating panel design puts it at an ideal viewing angle. The Z800AW is more factory-correct — it sits flush in the dash exactly where the original screen was, and someone sitting in the passenger seat might not immediately realize the screen isn't stock.
2-Way Installation on the Z800AW
The Z800AW has one significant technical advantage over the Z1000AW — 2-way installation support. Some vehicles have very limited depth behind the dashboard panel, making standard installation difficult. The Z800AW's chassis can be installed sideways in these situations, dramatically expanding the range of vehicles it can fit into cleanly. The Z1000AW doesn't offer this flexibility.
Price — $450 Difference
The Z1000AW costs $450 more than the Z800AW for a larger screen and floating panel design. The core technology — wireless CarPlay, Android Auto, Bluetooth 5.2, Wi-Fi, 13-band EQ, JVC K2, camera inputs — is identical. If your vehicle supports both and screen size matters to you, the Z1000AW is worth it. If you value the flush factory fit and the price difference is meaningful, the Z800AW delivers the same technology at a lower price point.
Which One Should You Choose?
Choose the Z1000AW if:
- Your vehicle is compatible with the 10.1" floating panel configuration
- You want maximum screen size and visibility
- You're replacing a smaller factory screen and want a significant visual upgrade
- Budget allows for the $450 premium
Choose the Z800AW if:
- Your vehicle has a factory 8" screen that the Z800AW replaces directly
- You prefer a factory-flush OEM appearance over a floating panel
- Your vehicle has limited dash depth and benefits from 2-way installation
- You want the same core technology at a lower price point
Neither unit works in every vehicle. Both require specific Maestro APX mounting components that are vehicle-specific, and compatibility is not universal. Before ordering either unit, contact Saint Nordic Custom Autoworks at 763-260-1491 to confirm which system works in your vehicle and get an accurate installation quote. We've done both of these across a wide range of vehicles and can tell you exactly what's involved for yours.
