Saint Nordic · Head Units & Radios

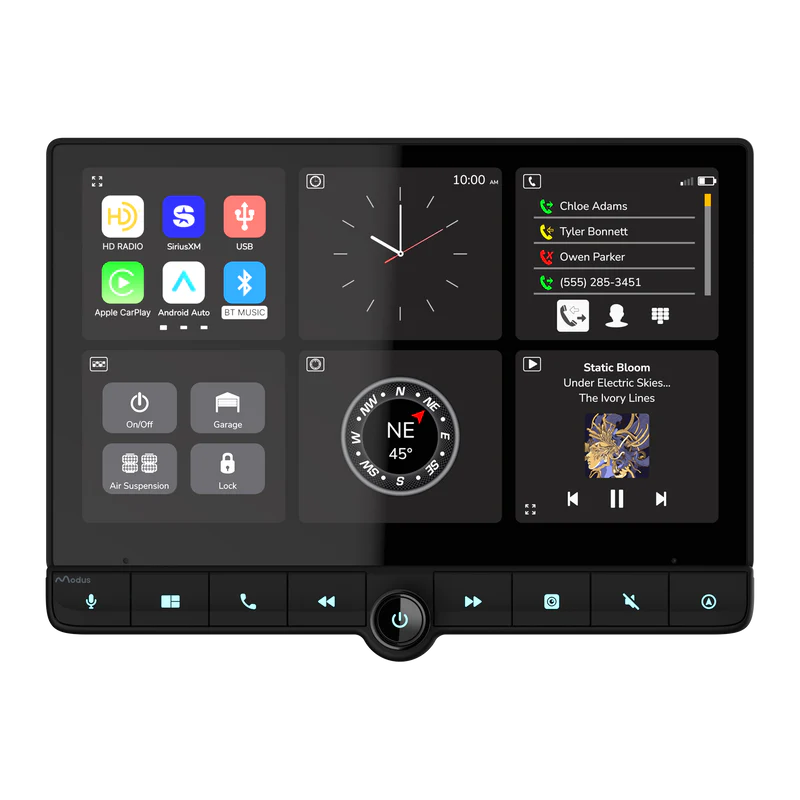

MODUS
AIM-10.
10.2" modular single-DIN receiver with wireless CarPlay, wireless Android Auto, built-in DSP, 8-channel 5V preouts, variable TOSLINK digital output, and 4 individually triggered camera inputs — engineered for serious custom installs.
Starting At
$1,499.99
Unit price only. Professional installation available at Saint Nordic —
installation pricing varies by vehicle. Contact us for a quote.
What Makes It Different
BUILT FOR
SERIOUS INSTALLS.
The Modus AIM-10 isn't a mass-market head unit — it's engineered for high-end custom installs where audio quality, installation flexibility, and system expandability actually matter. The modular chassis, built-in DSP, variable TOSLINK digital output, and 8-channel 5V preamps put it in a category well above standard aftermarket receivers.
📱
Wireless CarPlay & Android Auto
Both wired and wireless Apple CarPlay and Android Auto built in. Your phone connects automatically every time you start the car — no cable required.
🎛️
Built-In DSP
15-band EQ with 6 presets, dual front crossover settings, and time alignment built directly into the head unit. Precise audio tuning without an external processor for most builds.
🔊
8-Channel 5V Preamp Outputs
High-voltage, low-impedance 8-channel RCA outputs deliver a clean, powerful signal to external amplifiers — giving your system maximum headroom and minimal noise.
💡
Variable Digital TOSLINK Output
Sends a pure variable digital signal directly to a DSP or amplified DSP, keeping the audio path completely clean and eliminating analog conversion noise entirely.
📷
4-Camera System — Individually Triggered
Four individually triggered camera inputs for front, rear, and side camera integration — each camera activates independently based on its trigger signal, ideal for trucks, large SUVs, and custom builds requiring full surround visibility.
🧩
Modular Chassis Design
The optional detachable button cluster gives installers the choice between physical controls or a clean touch-only interface — adapting to virtually any dash layout.
🔄
Adjustable Display Mount
Height-adjustable, rotatable, and pivoting screen mount allows precise positioning regardless of dash depth or angle — essential for non-standard install applications.
🎵
Hi-Res Audio — 32-Bit AKM DAC
FLAC 192kHz/24-bit hi-resolution audio playback through a 32-bit AKM DAC — one of the highest quality digital-to-analog converters available in any head unit at this price point.
🚗
iDatalink Maestro & Axxess Ready
Full iDatalink Maestro and Metra Axxess compatibility for steering wheel control integration, factory feature retention, and vehicle-specific installation accuracy.
System Expansion
THE CENTER OF
YOUR BUILD.
The AIM-10 is designed as the foundation of an expandable high-end system. Whether you're running a full amplifier stack, an external DSP, or a multi-camera surround setup, the AIM-10 has the outputs, inputs, and processing to support it.
8
Channel 5V Preamp Outputs
Wireless & wired CarPlay + Android Auto
Built-in DSP — 15-band EQ, crossover, time alignment
TOSLINK digital optical output — noise-free signal
4 camera inputs — front, rear, and side
Integrated 4-output accessory controller
RGB button illumination — matches your build
Specifications
TECHNICAL
DETAILS.
Starting Price
$1,499.99 MSRP — call for installation pricing
Display
10.2" Full HD capacitive touchscreen — 1920 × 1080 · Only unit in class at this resolution
Chassis
Single-DIN shallow mount · Modular design · Detachable / optional button pack · Adjustable display mount
CarPlay / Android Auto
Wireless & wired Apple CarPlay · Wireless & wired Android Auto
Built-In Amplifier
25W RMS × 4 — highest built-in power in segment
Preamp Outputs
8-channel / 5V — most channels in class
Built-In DSP
15-band EQ with 6 presets · Pro DSP & crossover · Time alignment
Digital Output
Variable digital TOSLINK optical output
Hi-Res Audio
FLAC 192kHz/24-bit · 32-bit AKM DAC
Camera Inputs
4-camera system — individually triggered quad camera support
USB
3 USB total: 2× USB-C (3.0 + 2.0) + 1× USB-A
Bluetooth
Bluetooth 5.0 + EDR
Tuner
AM/FM · SiriusXM-Ready® · HD Radio Ready™
Video Input
HDMI video input
Integration
iDatalink® Maestro compatible · Metra Axxess® compatible · Steering wheel control ready · 4-output accessory controller
Warranty
2-year manufacturer warranty
Installation
Professional installation available at Saint Nordic Custom Autoworks. Installation pricing varies by vehicle — contact us for a quote specific to your vehicle.
Saint Nordic Custom Autoworks
ORDER YOURS.
WE'LL HANDLE THE REST.
The Modus AIM-10 starts at $1,499.99. Professional installation is available at Saint Nordic — pricing varies by vehicle since every install requires different parts and components. Contact us for an installation quote specific to your vehicle.
